Why Cone Size Is Not a Number You Can Order From
Cones are sold by name rather than by dimension. A supplier will offer a "standard waffle cone" and a "large waffle cone", and two suppliers using those words will send you cones that differ by several millimetres.
For most purposes that does not matter. For a sleeve it matters a great deal, because a wrap cut a few millimetres too wide slides down the taper the moment the cone warms up.
This is the single most common reason a first order of cone sleeves gets replaced, and it is entirely avoidable.
The Two Measurements That Set the Die
You need a cone, a ruler and about a minute. Do this with a cone from your current stock, not a photograph from a catalogue.
Measure the Top Diameter
Across the open rim, outside edge to outside edge, at the widest point. Cones are rarely perfectly round, so take the widest reading rather than an average.
Measure the Slant Height
From the rim, down the outside of the cone, to the point where you want the sleeve to stop. This is along the sloping side, not straight down through the middle — that distinction matters and is the step most often got wrong.
Repeat on Two More Cones
Take three cones from the same box and measure all three. If they differ by more than a millimetre or two, that variation has to be built into the die.
Decide How Much Wafer Stays Visible

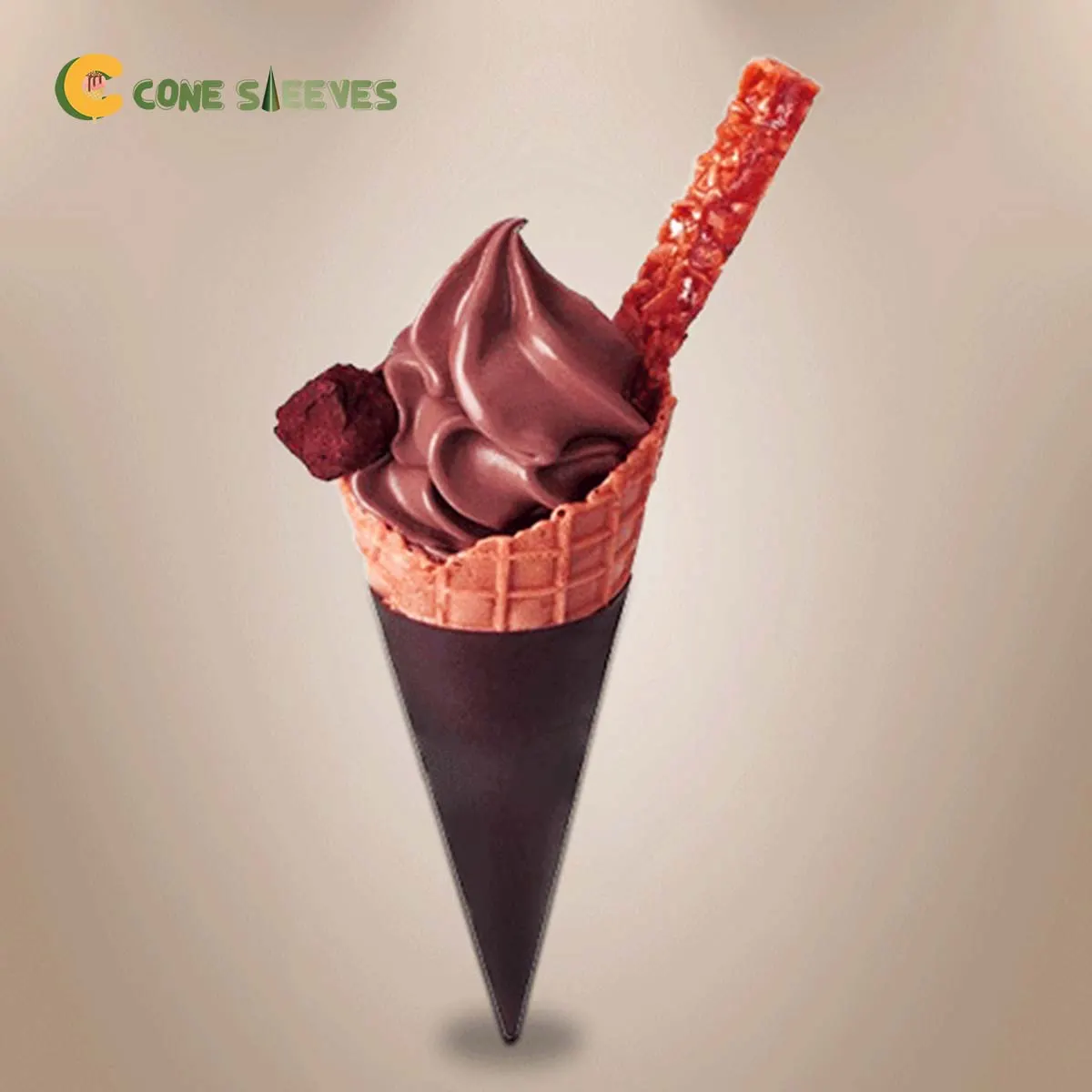

Most parlours leave two to three centimetres of cone showing below the rim, so the wafer is part of what the customer sees. Covering to the rim protects better and hides the product.
Slant Height, Not Vertical Height
A cone is a triangle in profile. The distance from the rim down the sloping side is longer than the vertical drop from the rim to the same point, and it is the slant measurement that determines how much board wraps around the cone.
Using the vertical height produces a sleeve that is consistently too short, usually by enough to be obvious but not enough for anyone to work out why.
If you are unsure, lay the cone on its side against a ruler and measure along the edge you can see. That is the slant.
What Changes the Answer
Several things shift the ideal size away from a straight measurement of the cone:
- Batch variation — baked cones are not dimensionally consistent, so a die cut to the tightest possible fit will fail on a slightly larger delivery.
- Scoop weight — a heavier serve pulls the cone down through the customer's grip, which argues for a sleeve that sits a little higher.
- Service temperature — a warm shop softens wafer cones slightly, changing how firmly a sleeve holds.
- Whether the cone is pre-sleeved — a sleeve fitted before filling can be a fraction tighter than one pushed on afterwards.
- Whether you also use a cone holder, since the holder grips the same taper the sleeve sits on.
A small tolerance built into the die covers most of this. Too much tolerance and the sleeve spins; too little and a normal batch variation makes the whole order unusable.
If you use cone holders that grip the same taper, tell us at the same time so the two are cut to work together.
Sizing for More than One Cone
Sites selling both waffle and cake cones almost always need two dies. A cake cone tapers more sharply and has a narrower rim, so a sleeve cut for a waffle cone sits loose on it and rotates as the customer eats.
That is not a compromise worth making. The artwork can be identical across both, which keeps the design cost to one job, and only the die changes.
Children's cones are a third case again, and scaling the adult artwork down rarely works — type becomes unreadable and fine detail drops below what the press holds on board.
We cover why children's sleeves need their own layout separately, because it is not a scaling exercise.
Short Band Against Deep Wrap
Depth is a choice rather than a measurement, and it changes the cost as well as the performance.
| Short band | Deep wrap | |
|---|---|---|
| Cone visible | Most of it | Very little |
| Drip control | Catches the first drips only | Catches melt running down the side |
| Board used | Less, so a lower unit cost | More |
| Suits | Indoor counters, artisan presentation | Hot days, children, mobile units |
| Grip | Adequate | Better, particularly with small hands |
Plenty of seaside sites run a deep wrap through the summer and a short band the rest of the year, from one artwork file and two dies.
The Simplest Way to Get This Right
Post us three cones. It removes every measurement question at once, including the ones you would not have thought to ask about, such as how much the rim varies within a single box.
We cut the die from the physical cone, allow a working tolerance, and send a flat sample you can wrap around a real cone before anything is printed.
That last step is worth taking seriously. Changes at the flat-sample stage cost nothing; changes after a run has printed cost the run.
Things Worth Measuring at the Same Time
While you have a cone and a ruler out, these save a second round of questions later:
- The rim thickness, which affects how firmly a sleeve grips near the top.
- The overall cone height, useful if you are also considering a holder or a carrier.
- The weight of a typical filled cone, which informs the board recommendation.
- How much a cone varies within one box, measured across three or four samples.
- Whether your cones sit in a stand before filling, which changes where the wrap can start.
None of these are essential, and all of them make the first quote more accurate than it would otherwise be.
Questions
What if we change cone supplier later?
Send a cone from the new supplier and we will check it against the existing die. Small differences are often inside the tolerance already built in; a genuinely different shape needs a new die, which is worth knowing before you commit to the new cone rather than after.
Can one sleeve cover waffle and sugar cones?
Rarely. A sugar cone is narrower at the rim and tapers more steeply, so a waffle sleeve sits loose and rotates. Two dies from one artwork file is the normal answer.
How much tolerance should a sleeve have?
Enough to absorb normal batch variation in your cones and no more. That is why we prefer to measure three cones from the same box rather than one — the spread between them tells us what the tolerance needs to be.
Can we measure a cone with an ordinary ruler?
Yes. A ruler and three cones is all the equipment needed. The difficulty is knowing which two measurements matter, not the equipment.
What if our cones vary a lot?
Then the die needs more tolerance, which is exactly why we ask for three samples rather than one. The spread tells us what to allow.
Does the sleeve depth affect the size calculation?
It changes the slant height measurement, since that runs from the rim to wherever you want the wrap to stop.
Should we measure a filled cone?
Measure the empty cone for the die, but look at a filled one to decide the depth. Toppings determine where the wrap should stop.
Can you size from a competitor's sleeve?
Sometimes, though a competitor's sleeve tells us about their cone rather than yours. A cone from your own stock is always the more reliable sample to work from.
How much does a wrong size cost?
A whole run, because a sleeve that slides is unusable. That is why the flat sample stage exists before anything is printed.
Do children's cones need separate measurement?
Yes. A children's cone is a different shape rather than a scaled version, so it needs its own measurements and its own die.
